Picture of MDGRAPE-4A


a special-purpose computer for molecular dynamics simulations
mapCenter for Biosysytem Dynamics Research



We have been developing a series of special purpose computers for molecular dynamics simulations. In 2019 we have completed the MDGRAPE-4A, an improved version of MDGRAPE-4[1]. The target performance is to make it possible to simulate typical protein-ligand complex surrounded by water for microseconds per day, which is one order of magnitude faster than commercially available systems. Currently the full hardware system is in operation and production software with some functional restrictions is running on the system. Accuracy of the software was verified by measuring relative errors and comparing simulated physical properties with results of GROMACS single precision.
The achieved performance is roughly 1 microsecond per day for the systems including about 100 thousand atoms.Utilizing MDGAPE-4A, a drug discovery project for COVID-19 is ongoing[2].

System Architecture

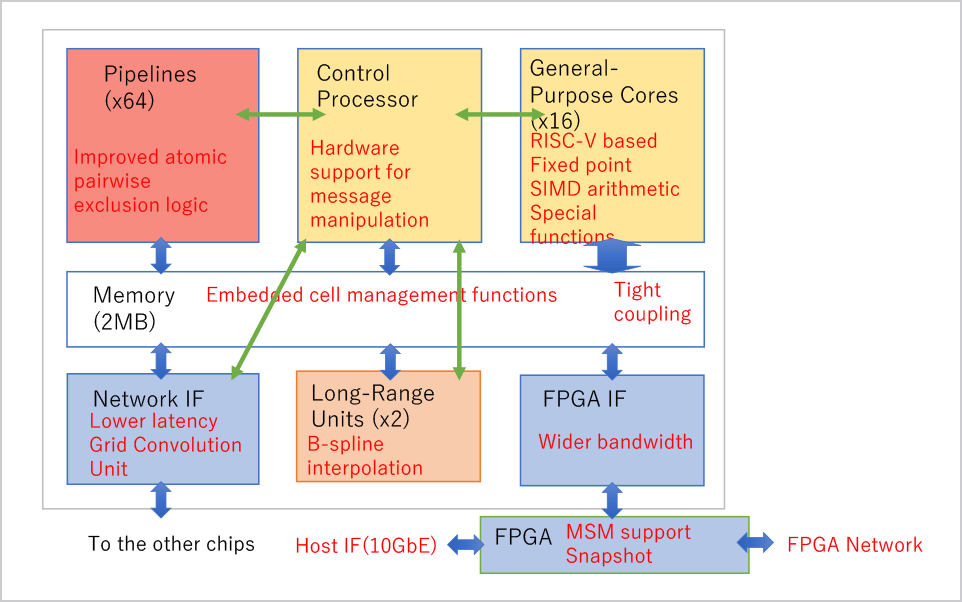

Advanced from MDGRAPE-4
Message flow
Data flow

Design: RIKEN D-Clue Technologies
Manufacturer: ALCHIP TSMC 40G 16.28mm x 16.28mm
Logic: ~50M gates
SRAM: ~72M bits
Power: 85W
Clock: 0.6GHz、0.8GHz(pipelines)

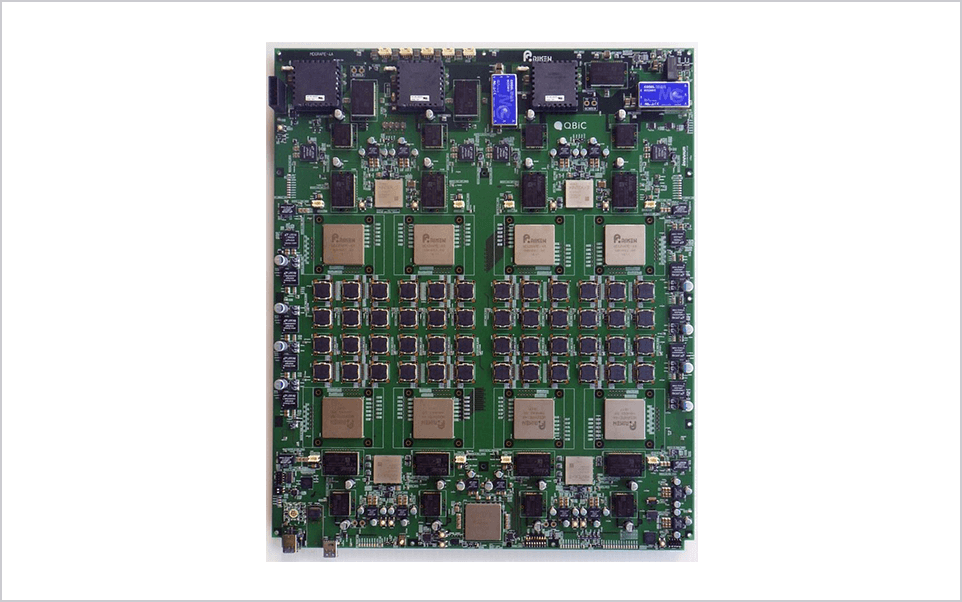

MDGRAPE-4A Board: 8 LSIs

Picture of MDGRAPE-4A Board: 8LSIs

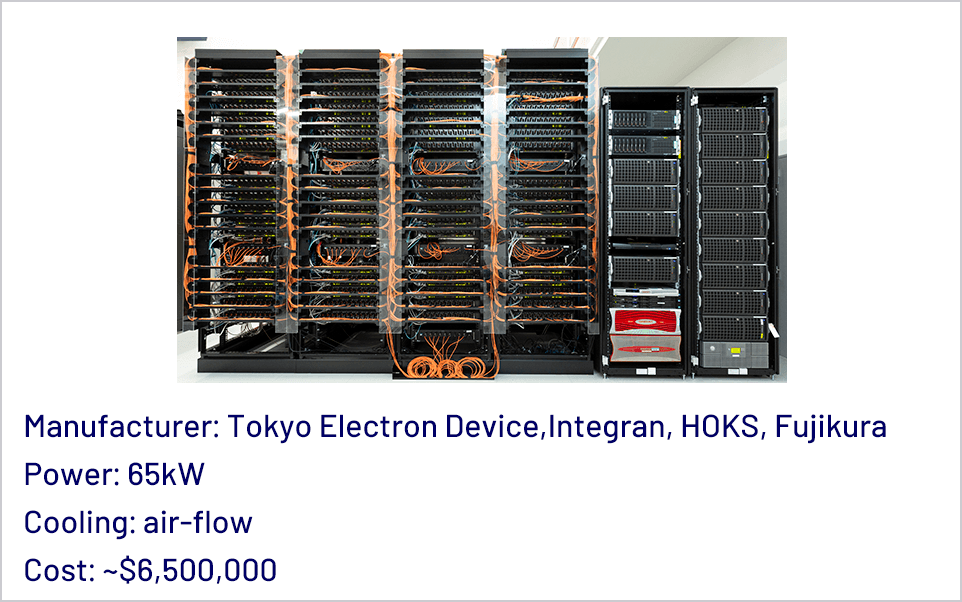

MDGRAPE-4A Full System: 64 Boards

Picture of MDGRAPE-4A Board: 8LSIs

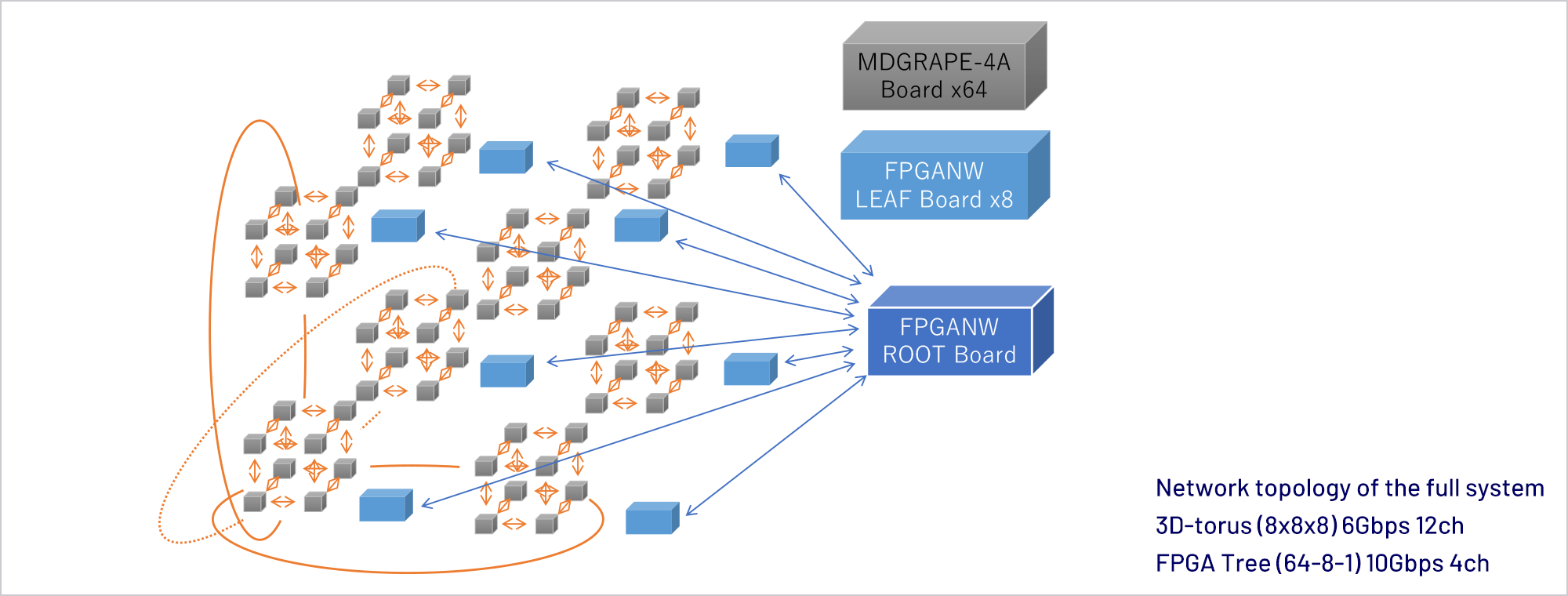

Network topology of the full system

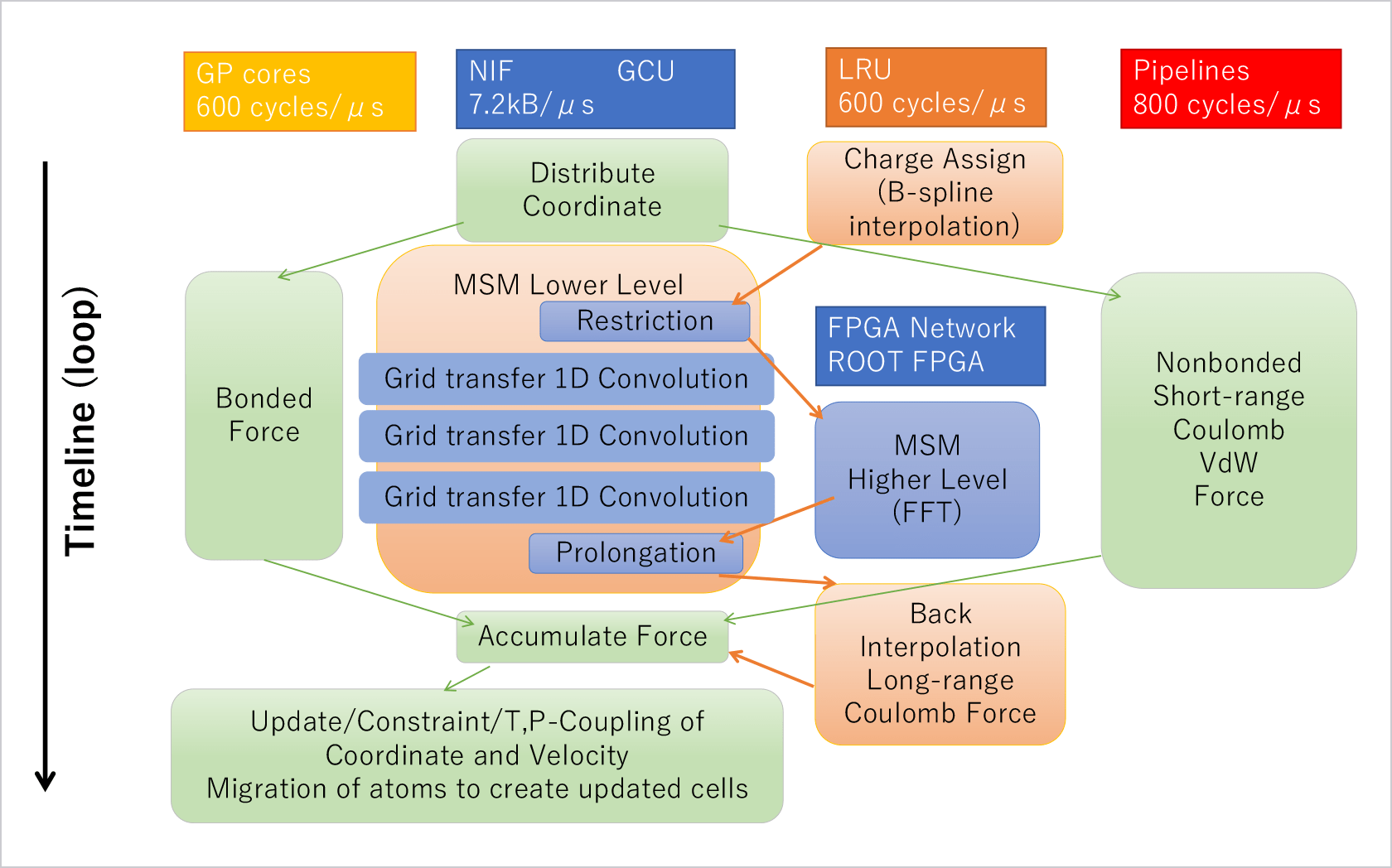

Sequence of parallel MD computation

Achieved performance: less than 200µs to finish 1 MD time step (dt = 2.5fs), more than 1µs/day simulation speed.

Sequence of parallel MD computation
Computer System Elapsed time for single step (µs) Performance (µs/day,dt=2.5fs)
MDGRAPE-4A 200 1
Commodity Cluster 1,000 0.2
GPU 2,000 0.1
Laptop 100,000 0.002

*These are rough order estimate and detailed values are dependent on simulation conditions. Anton, the other special computer developed by D. E. Shaw Research is one or two orders of magnitude ahead of MDGRAPE-4A.

Software specifications

  • GROMACS compatible input/output converter
  • Velocity-Verlet integrator
  • AMBER force field (CHARMM w/o CMAP, OPLS-AA can be converted)
  • SETTLE constraint for TIP3P water
  • RATTLE constraint for H-bonds
  • Temperature control (velocity rescaling)
  • Long range electrostatics (MSM)
  • Pressure control (Monte Carlo barostat)
  • Extension for larger complicated systems (>120k atoms, membrane)
  • Extension for other various force fields (TIP4P, CMAP)

Algorithms for electrostatic interactions

Multilevel Summation Method (MSM)[3]

Replace FFT part of commonly used SPME with real space grid convolution and coarser FFT. It demands more computation but less communication than SPME, which is suitable for MDGRAPE-4A architecture.

Zero-Multipole Summation Method (ZMM)[4]

Cutoff method utilizing electrostatic neutralization principle.
Long-range electrostatic is not calculated.

Coulomb Performance(µs/day)
ZMM(order=2) 1.25
MSM(ngrid=32) 1.12

Target system to measure the full system performance: 100,000 atoms in total in ~10𝑛𝑚 cubic box. The system is divided into 4096 cells, 8 cells per node.

Against COVID-19

Simulated binding process of a HIV inhibitor (nelfinavir) to SARS-CoV-2 Mpro

One of the application of long-term MD simulations is drug discovery study. The purposes of the simulation are to explore the change of site pocket shape, to find the binding pathway and to estimate the affinity of a ligand to the site.


  1. Ohmura, I., et al., MDGRAPE-4: a special-purpose computer system for molecular dynamics simulations, Phil. Trans. R. Soc. A, 372:20130387, 2014.
  2. Komatsu, T. S. et al., Drug binding dynamics of the dimeric SARS-CoV-2 main protease determined by molecular dynamics simulation, Sci. Rep. 10, 16986, 2020.
  3. Hardy, D. J., et al., Multilevel summation with B-spline interpolation for pairwise interactions in molecular dynamics simulations, J. Chem.
    Phys.,144:114112, 2016.
  4. Sakuraba, S. et al., Performance evaluation of the zero-multipole summation method in modern molecular dynamics software, J. Comp. Chem. 39(20), 2018 .


Some of this work is conducted as a part of “Construction of Drug Discovery Informatics System” supported by Japan Agency for Medical Research and Development (AMED). This work is supported by the Japan Society for the Promotion of Science (JSPS). We wish to thank Taisho Pharmaceutical Co., Ltd.
for the collaboration to evaluate the design of the general-purpose cores.
