3.1.1. Assign resource registration

 [Name]
 resourceadd - Set the computing resource limit value
 [Style]
 resourceadd -g group name [-u user name] [-rscgrp resource group name] [-resource resource value]
 resourceadd -f file name
 [Description]
 resourceadd command further sets a limit value for each resource group or user for the computing resource assigned to the sub-theme. By setting, the budget limit (upper limit) for resource groups and users can be set. There are two types of registration formats: a single format that distributes computing resources to a single issue and a CSV format that is set for multiple issues at once.
 This command is used for the condition to set the calculation resource frame for the first time, use the resourcemod command when changing the value that has already been set, or when setting the calculation resource frame in a condition that already has a job submission record.
 To check whether the calculation resource frame has already been set or whether the job has been submitted, use the accountj command and check the status of the target condition.
 When the target information line exists, it will be the target of this command.
  【Example】$ accountj -g group01 -E
  Use the above accountj command to check the status after setting the resourcemod command.

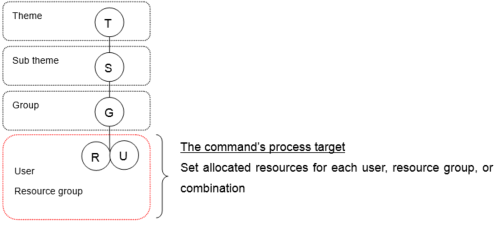

../_images/3_SystemManagement_02.png
 The computing resource allocation frame is a computing resource frame allocated by a registration organization in accordance with an application from a user at the time of assignment selection. Users cannot go beyond this limit to submit and execute jobs at Supercomputer Fugaku .
 The theme manager, sub-theme manager, and project manager can set assignment assignment resources for a hierarchy below the group (resource group and user hierarchy in the above diagram). However, only the system administrator can set the resource frame for a single resource group.
 Also, the general user cannot use the command.
 [Option]
 -g group name
 Specify group name.
 -resource Resource value
 Specify the computing resource limit (number of nodes x elapsed time limit value) that is the upper limit. Specify a positive integer value. The unit of the numerical value is node seconds [node · s]. If 0 (zero) is specified, use is prohibited.
 -u user name
 Specify user name.
 -rscgrp resource group name
 Specify resource group name which wants to limit the use of computing resource.
 【File layout】
 Required column ○: Required, △: Required or not is depending on resource type

No

Item name

Category

Required

Note

1

RTYPE

Alphabetic characters

Resource type
User: USER
Resource group: RSCG
User-resource group: USER_RSCG

2

GROUP

Single-byte alphanumeric symbol

Group name

3

USER

Single-byte alphanumeric characters

User name
NULL when resource group is specified

4

RSCGRP

Single-byte alphanumeric characters

Resource group name
NULL when user is specified

5

LIMIT

Number

Computing resource frame
(Node number x run time limit value)
※Specify a positive integer value. The unit of the numerical value is node seconds [node · s]. If 0 (zero) is specified, use is prohibited.

 【File setting example】

RTYPE,GROUP,USER,RSCGRP,LIMIT ...header
USER,group01,user1,,100 ...Assign to the user
RSCG,group01,,rg1,100 ...Assign to the resource group
USER_RSCG,group01,user1,rg1,100 ...Assign to the user and resource group combination
 --help
 Display command help contents.
 [Return value]
 Normal: 0
 Abnormal: 1
 [Note]
 None.
 [Use example]
 【Example 1】 Set the limit value to the user
[login]$ resourceadd -g group01 -u user1 -resource 100
Registered 1 resource information.
[login]$

 【Example 2】 Set the limit value to the user and resource group conbination

[login]$ resourceadd -g group01 -u user1 –rscgrp rg1 -resource 100
Registered 1 resource information.
[login]$

 【Example 3】 Set the limit value to multiple condition for bulk

[login]$ resourceadd -f resourceadd.csv
Registered 4 resource information.
[login]$
