5.9. Job execution command options

This is a list of pjsub options.

5.9.1. Basic option

This is to indicate pjsub command’s basic option, such as job execution group, environment variable passing, etc.

Option name	Function
-L “resource=value[,…]”	Specifies options related to job resources. Indicates on “Resource specification” for details.
--mpi “parameter[,…]”	Specify various parameters for the MPI job. Indicates on “MPI option” for details.
--gname “gname”	Specify the name of the group to which the job process belongs when executing the job. You can specify either a group name (gname) or a group ID (gid). If the specified group does not exist in the job management node, job submission will result in an error.
--help	Display help.
-j	Standard error output is output to standard output.
-m “mailoption[,…]”	Specify whether to send email notifications for job status and other information. See man pjsub for mailoption. When using this option, be sure to specify an email address using --mail-list.
--mail-list “mailaddress[,…]”	Specify the mail destination. When specifying multiple items, separate them with commas (“,”). The string size you specify is limited to 255 characters. Please note that if you enter the wrong e-mail address, it will not reach the recipient and there will be no error notification.
--name “name”	Specifies the name of the job. You can specify up to 63 bytes for the job name. If this option is not specified, the script file name specified on the command line is set as the job name. If the script file name is not specified, “STDIN” is set as the job name. The first character of the job name is only one-byte alphabet. name cannot be a string containing “/”. The job and script file names can contain the following characters. Any single byte alphanumeric characters, single byte hyphen(-), single byte underscore(_) and single byte dot(.) can be used. Other characters are not supported.
--restart	When this option is specified, attempts to run the job again if the job execution is interrupted due to a job execution environment shutdown or an error. If this option is not specified (Default Value), the job does not rerun.
-X	Transfer all environment variables to the compute node.

Hint

To assist the operation of the supercomputer Fugaku, Fugaku specific Environment Variables and pjsub Options are provided. You may also want to use these options.

5.9.2. Resource specification

Indicates an option that specifies the resources used by the job.

Specify the upper limit value of the resource requested by the job in the format of resource = value after -L.

When specifying multiple resource, separate them with commas.

Item name	Contents
-L “node=nodeshape”	Specify the number of nodes and the shape to be assigned to the job. If 1 dimention: node=N1 If 2 dimentions: node=N1xN2 If 3 dimentions: node=N1xN2xN3 Following the node shape specification, the node allocation method can be specified. If 1 dimention ：node=N1[:torus|:mesh|:noncont] If 2 dimentions：node=N1xN2[:torus|:mesh|:noncont] If 3 dimentions：node=N1xN2xN3[:torus|:mesh|:noncont] :torus Torus mode that allocates computer resources to jobs in units of Tofu (12 nodes) :mesh Mesh mode that allocates computer resources to jobs in units of node :noncont Non-contiguous mode that allocates computer resources to jobs in units of node The available number of nodes, shape and allocation method are set for each resource group. Refer to Resource.
-L “elapse=elapsetimelimit”	Set the elapsed time limit for each job. The maximum value is set for each Resource group. elapsetimelimit is specified in the format “[[time:] minute:] second”. -L "elapse=30" (If 30 seconds) -L "elapse=2:30" (If 2 minutes 30 seconds) -L "elapse=1:00:00" (If 1 hour)
-L “elapse=min_limit-max_limit” -L “elapse=min_limit-”	Specifying an elapsed time limit value as a range. The values that can be specified for min_limit and max_limit differ for each Resource group. (How to check min_limit, max_limit is described later.) After the elapsed time reaches min_limit, job execution can continue only until the elapsed time reaches max_limit. However, even when the elapsed time is less than max_limit, the job is forcibly terminated in the following situation. When the node is needed for a subsequent job. When the node enters a period reserved by deadline scheduling. -L “elapse=2:30-5:00” (2 mins 30 sec-5 mins) -L “elapse=1:00:00-1:30:00” (1hour - 1hour and 30mins) -L “elapse=2:00:00-24:00:00” (2hours - 24 hours) -L “elapse=2:00:00-” (Maximum value of the resource group used when max_limit is omitted)
-L “rscgrp=rscgname”	Specify the resource group name rscgname to submit the job.

5.9.2.1. Jobs specifying the minimum elapsed time limit value

You can use the following formats to specify the elapsed time limit value for the job on Fugaku except some resource groups.

On normal job execution, jobs will terminate to reach the elapsed time limit.

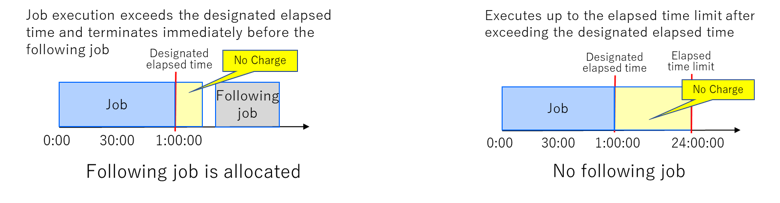

But by specifying the minimum elapsed time limit value (min_limit), your job can run after the minimum elapsed time limit unless other jobs will not be scheduled on nodes used by your job. the compute resource used by your job after the minimum elapsed time limit will no longer be charged

The job scheduling time is decided based on the minimum elapsed time limit, so short specified elapsed time will make short waiting time to be executed.

After the elapsed time reaches min_limit, job execution can continue to run until the elapsed time reaches max_limit, and used compute resource over min_limit will be no charge.

- max_limit can be specified for up to “the max. amount of elapse time limit + 72H”

- If max_limit is not specified (e.g., elapse=30:00-), “the max. amount of elapse time limit + 72H” is applied to max_limit.

However, even when the elapsed time is less than max_limit, the job is forcibly terminated when other job is allocated on nodes used by your job. So you need to be prepared for the job termination using check-point restart or something like.

- We recommend using VeloC as a check-point restart.

VeloC User Guide

VeloC Webpage

ref: Job Operation Software End-user’s Guide - 2.3.2.3 Specifying the elapsed time limit value for a job

The following example shows how to determine the min _ limit, max _ limit configured for each resource group.

Batch Job Example

$ pjacl -u $USER -g $GROUP --rg small
(Omitted)
pjsub option parameters
    (-L/--rsc-list)                         lower            upper            default
        (elapse=)                           00:01:00         72:00:00         00:01:00
        (adaptive elapsed time min)         00:01:00         72:00:00         00:01:00  # minLimit for batch jobs
        (adaptive elapsed time max)         00:01:01         144:00:00        144:00:00 # maxLimit for batch jobs

Conversational Job Example

$ pjacl -u $USER -g $GROUP --rg int
(Omitted)
pjsub option parameters
(Omitted)
    (--interact -L)                         lower            upper            default
        (elapse=)                           00:00:10         06:00:00         00:00:10
        (adaptive elapsed time min)         00:00:10         06:00:00         00:00:10 # minLimit for conversational jobs
        (adaptive elapsed time max)         2                48:00:00         02:00:00 # maxLimit for conversational jobs

Attention

• Jobs with a range of elapsed times are excluded from parameter changes by the pjalter command. You cannot change the parameters (Elapsed time limit, resource group, resource unit, and in-user priority) after you have submitted them.

• Jobs with an age specification in the range are not covered by Job allocation operation. A range can be specified for direct input to the destination resource group.

5.9.2.2. Low priority jobs

You can run a job at a low priority without consuming resources allocated in Fugaku.

Target Project: Projects other than paid projects

You can submit a job only if the project used for job submission is the target project. If the input condition is not satisfied, an error occurs.

Following resource groups are for low priority jobs.

• spot-large

• spot-small

• spot-int

• spot-middle

Attention

• Fee-based Access Projects are not eligible for low priority jobs.

• Low priority jobs are executed when compute nodes are free.

• If there are some normal priority jobs, the low-priority job will wait until the node becomes available, regardless of the submission time.

• The configuration of low priority job’s resource groups the same as the normal resource group (the XXX part of spot-XXX), except for the priority.

For low-priority jobs, the job execution time limit is limited to 4 hours.

However, if no successor jobs are scheduled on the node where the low-priority job is running, the job can continue to run for up to 12 hours (spot-int is 6 hours).

If you want to execute a job that exceeds the maximum execution time, specify the elapsed time as a range, referring to “5.9.2 Resource specification“ and “5.9.2.1 Jobs specifying the minimum elapsed time limit value“.

However, the specified time range must have a lower limit of 4 hours or less and an upper limit of 12 hours or less.

Example: How to submit a job that has an age of 4 hours and continues to run for up to 12 hours if no subsequent jobs are assigned

[_LNlogin]$ pjsub -L "elapse=4:00:00-12:00:00" job.sh

If you specify a job elapse of 4 hours or less, you do not need to specify an elapse range. In this case, the job ends after the specified time has elapsed.

[_LNlogin]$ pjsub -L "elapse=4:00:00" job.sh

Attention

• An error occurs if you specify a value greater than 4 hours for the lower limit. And an error occurs if you specify a value greater than 12 hours for the upper limit.

  The following example generates an error:

  -L “elapse=6:00:00-12:00:00” (The lower limit of the specified time exceeds 4 hours.)

  -L “elapse=4:00:00-24:00:00” (The upper limit of the specified time exceeds 12 hours.)

• If you submit a job with an incorrect execution time, the following error message is output. Correct the job execution time specification, and then re-submit the job.

  [ERR.] PJM 0057 pjsub elapse=18000 is greater than the upper limit (14400).

• Jobs that run longer than the running time limit are killed when subsequent jobs are scheduled.

  If a low-priority job ends prematurely because a subsequent job is scheduled, the job transitions to the CCL state, and ANOTHER JOB STARTED appears in the REASON column of the job statistics. You can use the pjstat command to check.

5.9.3. MPI option

Set parameters related to MPI operation.

Set as settings related to MPI used in jobs --mpi "parameter[,parameter...]" option.

When specifying multiple parameter, separate them with commas.

Please refer to “ Specification when submitting an MPI job “ for the detail about option concerning to MPI.

Item name	Contents
--mpi “shape= shape “	Specifies the shape of the process to be started statically. To shape, shape=N1,shape=N1xN2 or shape=N1xN2xN3 can be specified. You must specify the same number of dimensions which is specified in node of -L(--rsc-list) option. If omitted, the same value as specified in node is used. If the vnode option is specified, only 1 can be specified.
--mpi “proc= num “	Specify the maximum number of processes to start statically in num. If omitted, it is the product of the values specified by shape. If the product of the value specified by shape x a value greater than the number of CPU cores in the node is specified, job acceptance is rejected. IF specified vnode option, Job reception is also rejected if a value greater than the number of cores specified in the vnode option is specified.
--mpi “max-proc-per-node= mppnnum “	Specify the maximum number of process that the program creates at the 1 node. If omitted, the maximum number of process at the 1 node will be the value obtained by converting the value specified in proc to the number of processes created in one node. If a value larger than the number of CPU cores in one node is specified or If the value converted from the value specified in proc to the number of processes created in one node exceeds mppnnum , the job acceptance is rejected. If specified vnode option, the job acceptance is rejected.

5.9.4. Job statistical information

When ending job execution, it can output the job statistical information.

To output the job statistical information, specify -s, or -S to pjsub command, and submit a job.

Job statistics are useful for investigating when a job ends abnormally.

Option name	Function
-s (Small letter)	Outputs the statistical information of the submitted job to a file. Cannot use with -S option. If you want to output to the specified file, specify --spath option.
-S (Large letter)	In addition to the information output by the -s option, the information for each submitted job node is output. Cannot use with -s ption. If you want to output to the specified file, specify --spath option.
--spath pathname	Outputs job statistics to the file specified by pathname. Need to specify -sor -Soption at the same time.

5.9.5. Environment variables in job scripts

The following are typical environment variables that can be used in job scripts.

For details, please refer to “2.1.2 Environment variables in jobs” of “Job Operation Software End-user’s Guide”.

Environment variables name	contents
PJM_BULKNUM	Buld number (set only bulk job)
PJM_COMMENT	Specified comment in --comment of pjsub option is entered.
PJM_ENVIRONMENT	Contains the job type. BATCH or INTERACT.
PJM_JOBDIR	Current directory path when job script execution starts
PJM_JOBID	Job ID is entered.
PJM_JOBNAME	Job name is entered.
PJM_LOCALTMP	The path of the temporary area in the node on the first-layer storage is entered.
PJM_SUBJOBID	Sub job ID is entered.
PJM_STEPNUM	Step job step number is entered.
PJM_LLIO_SHAREDTMP_SIZE	Contains the size (bytes) of the shared temporary area on the first-layer storage.
PJM_LLIO_LOCALTMP_SIZE	Contains the size (bytes) of the temporary area in the node on the first-layer storage.
PJM_LLIO_AUTO_READAHEAD	Whether to automatically pre-read when a job tries to read a continuous area on the first-layer storage or second-layer storage multiple times in succession on: read in ahead off: doesnt read in ahead
PJM_LLIO_ASYNC_CLOSE	Whether to close files on the first-layer storage and second-layer storage asynchronously on: Asynchronous close off: Synchronous close If on (asynchronous close) is set, writing completion is not guaranteed when the file is closed. When off (synchronous close) is set, writing is guaranteed when the file is closed.
PJM_LLIO_CN_CACHE_SIZE	Contains the size (bytes) of the cache in the compute node on the first-layer storage.
PJM_LLIO_CN_CACHED_WRITE_SIZE	Contains the threshold (bytes) for whether to cache when writing to the first-layer storage.
PJM_LLIO_CN_READ_CACHE	Whether to cache the file read from the first-layer storage or the second-layer storage in the cache in the compute node. on: Proceed cash. off: Dont proceed cash.
PJM_LLIO_SIO_READ_CACHE	Whether to cache the file read from the second-layer storage to the compute node in the first-layer storage. on: Proceed cash. off: Dont proceed cash.
PJM_LLIO_STRIPE_COUNT	Contains the number of stripes per file when files are distributed to the first-layer storage.
PJM_LLIO_STRIPE_SIZE	Contains the stripe size (bytes) for distributing files in the first-layer storage.
PJM_LLIO_UNCOMPLETED_FILEINFO_PATH	Contains the output path of unwritten file information. This is the path of the file that outputs a list of file names when a file that has not been written to the second-layer storage remains in the cache when the job ends.
PJM_O_HOME	Contains the user environment variable HOME, issued pjsub command.
PJM_O_LANG	Contains the user environment variable LANG, issued pjsub command.
PJM_O_LOGNAME	Contains the user environment variable LOGNAME, issued pjsub command.
PJM_O_PATH	Contains the user environment variable PATH, issued pjsub command.
PJM_O_SHELL	Contains the user environment variable SHELL, issued pjsub command.
PJM_O_HOST	Contains the user environment variable HOST, issued pjsub command.
PJM_O_WORKDIR	Contains the user current directory, issued pjsub command.

Attention

• Even if an environment variable with the same name as that shown in the table above is specified in the -x option of the pjsub command, the value is ignored and becomes the value shown in the table above.

• Environment variables set on the shell that executes the pjsub command are not inherited in the job unless otherwise specified. To take over the environment variables in job, specify -X option of pjsub command. However, the environment variable with the same name as the environment variable shown in the above table is ignored even if the -X option of the pjsub command is specified, and becomes the value shown in the table above.

5.9.6. Environment variables in MPI processes

The Job Operation Software sets the following environment variable in MPI processes.

For details, please refer to “2.3.6.10 Environment variable in MPI processes” of “Job Operation Software End-user’s Guide”.

Environment variables name	contents
PMIX_RANK	The rank number of the MPI process is set in decimal.
PLE_RANK_ON_NODE	The identification number of the MPI process in the compute node is set in decimal. An identification number is a unique number assigned within an MPI process belonging to the same MPI_COMM_WORLD on the same compute node, starting with 0.

5.9.7. Specifying an execution start time

Normally, the jobs submitted by users are executed as soon as possible, with the execution order determined according to resource availability and priority. However, users can specify execution start times.

To specify an execution start time, use the --at option of the pjsub command in the following format.

Format	Description
--at YYYYMMDD[hhmm]	YYYY is the year, MM is the month, and DD is the day. hh is the hour, and mm is the minute. If hhmm is omitted, 00:00 is assumed specified. The specification in seconds is not available.

The following example shows the submission of a job with the execution start time specified.

[_LNlogin]$ pjsub --at 202208011511 job.sh # Execution of job.sh starts at 15:11 on August 1, 2022.

Attention

• Specifying the execution start time (--at option) is available only for paid users.

• A job with the execution start time specified is never executed before the specified time even when there are free resources. Furthermore, it may be executed later than the specified time, depending on the availability of resources.

• An interactive job cannot have a specified execution start time. If one is specified, it is ignored.
