5.6. Workflow job

A workflow job is a collection of multiple jobs that perform execution control (conditional branching and repetition) on a job-by-job basis.
Like step jobs, this is used when the next job to be executed is determined according to the execution result of a job. However, depending on the contents of the shell script that controls execution, you can control with more flexibility than step jobs.

See also

Workflow jobs are not exactly job types, but a way for users to control the submission of multiple jobs using shell scripts.

5.6.1. Job submission

In workflow jobs, the user submits the job with a shell script.

For example, a shell script can automatically perform the process of waiting for the end of a specific job and submitting another job, or selecting the next job to submit based on the result of a job.
User proceed job submitting control with using pjwait command which offered by the job operation software.
  • Waiting for job completion

    You can wait for the end of one or more jobs in a shell script with using pjwait command.

  • Get job execution results

    You can obtain the job end code (job manager processing result), job script end status, and signal number when the job script ends with using pjwait command.

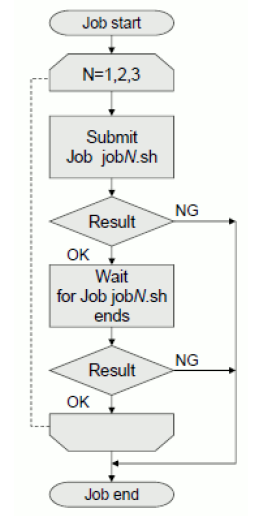

The following is a workflow job flow diagram.

../_images/SubmittingAWorkFlowJob_01.png

When this workflow job is described in a shell script, it will be as follows.

#!/bin/sh
for no in 1 2 3                       # Put in order job script job1.sh, job2.sh, job3.sh
do
  JID=`pjsub -z jid job${no}.sh`      # Display job ID with -z option and assign to shell variable JID
  if [ $? -ne 0 ]; then               # If the job submission result is other than 0, the workflow job ends
    exit 1
  fi
  set -- `pjwait $JID`                # Wait for the job to finish and assign the output result to the position parameter (Note)
  if [ $2 != "0" -o $3 != "0" ]; then # If either the job exit code ($ 2) or the job script exit status ($ 3) is not 0,
    exit 1                            # the workflow job is terminated.
  fi
done                                  # Go to execute next job

Attention

Depending on the type of job and how to specify the job ID, the output result may be multiple lines so arrangement is needed. About output, refer to man manual of pjwait command.
