MATLAB - Application Information¶

R-CCS provides a pre-installed MATLAB (Intel version) environment for the front-end servers of Fugaku.

Two versions (Academic and Bring Your Own License versions) are available.

1. Application method¶

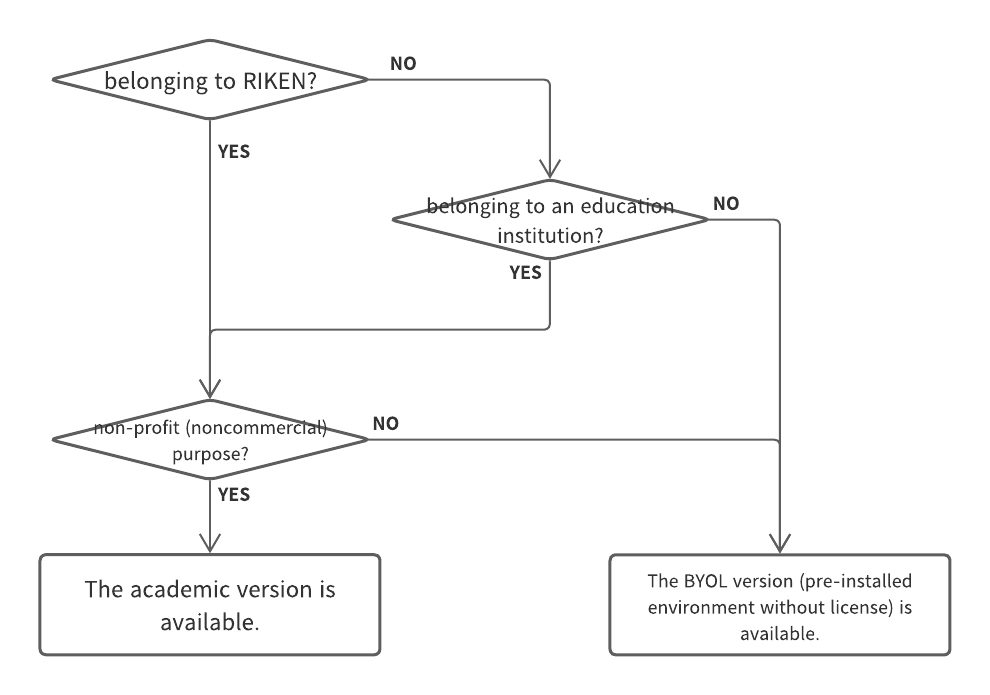

Please refer to the flowchart below to check if the academic version is available.
If the academic version is available, please apply from Zendesk.
If the conditions for the academic version are not met, only the BYOL version is available. The BYOL version does not require an application.

Access the request form (https://fugaku.zendesk.com/hc/en-us/requests/new) of Fugaku Support Site.
First, select the “Request form” pull-down menu.
Select “Use of commercial application” from the “Inquiry type” menu.
Input the “Project ID”, “Subject” and “User name” forms.
Select “MATLAB” from the “Application name” menu.
Select “Application to start” from the “Request to start/stop use” menu.
Check the “Agreed to the precautions” box.
Push the “Submit” button.

2. Note¶

To use the BYOL version, Fugaku users must only bring their own license to the login nodes or the pre/post environment and activates the license by themself. R-CCS does not provide a license.
For the Academic version, the users belonging to educational institutions (universities, colleges, colleges of technology, etc) can use it. On the other hand, those who belong to companies or research institutes except for RIKEN are not allowed to use it due to the license agreement.
For questions or assistance in using the application, please contact the MathWorks help center.

3. How to use¶

In this guide, we will use X-Window to proceed with the activation.

[PC]$ xhost +
[PC]$ ssh -Y -i ~/.ssh/{your private key} {username}@fugaku.r-ccs.riken.jp

We recommend running the MATLAB client in the pre/post environment since the client consumes significant computing resources.

[Login]$ srun --x11 -p gpu1 -n 72 --mem 186G --time=00:30:00 --pty bash -i

For the academic version, users can start the Matlab client without additional steps after logging in.

[PP]$ export TMPDIR=/tmp

// for the Academic version
[PP]$ cd /vol0004/apps/MATLAB_academic/R2023a/bin
[PP]$ ./matlab

For the BYOL version, users need activation steps.

The license file should be uploaded to a Fugaku login node beforehand.

[PP]$ export TMPDIR=/tmp

// for BYOL
[PP]$ cd /vol0004/apps/MATLAB/R2023a/bin
[PP]$ ./activate_matlab.sh

The steps for the BYOL version are as follow.

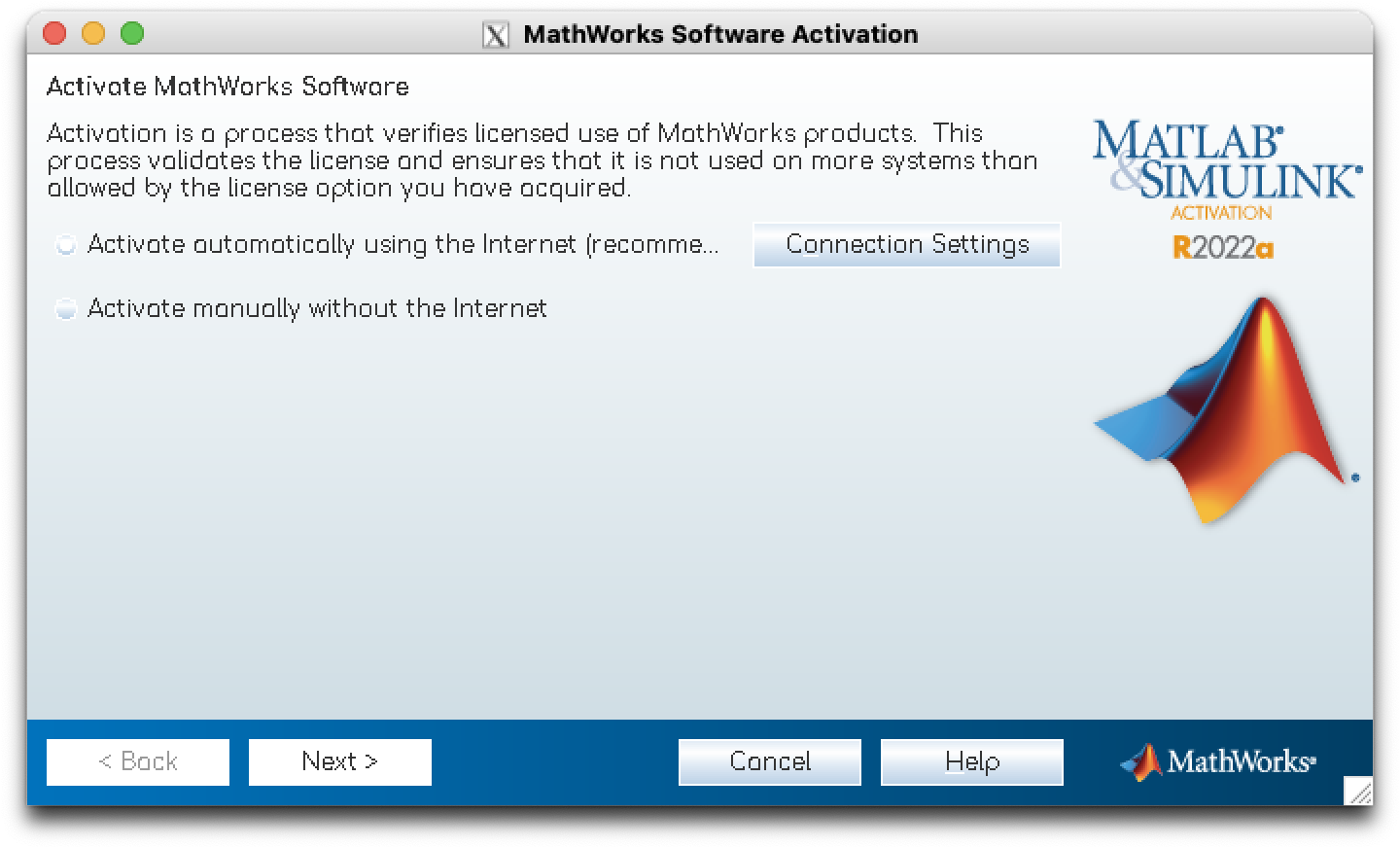

Select “Activate automatically using the Internet” and press the “Next” button.

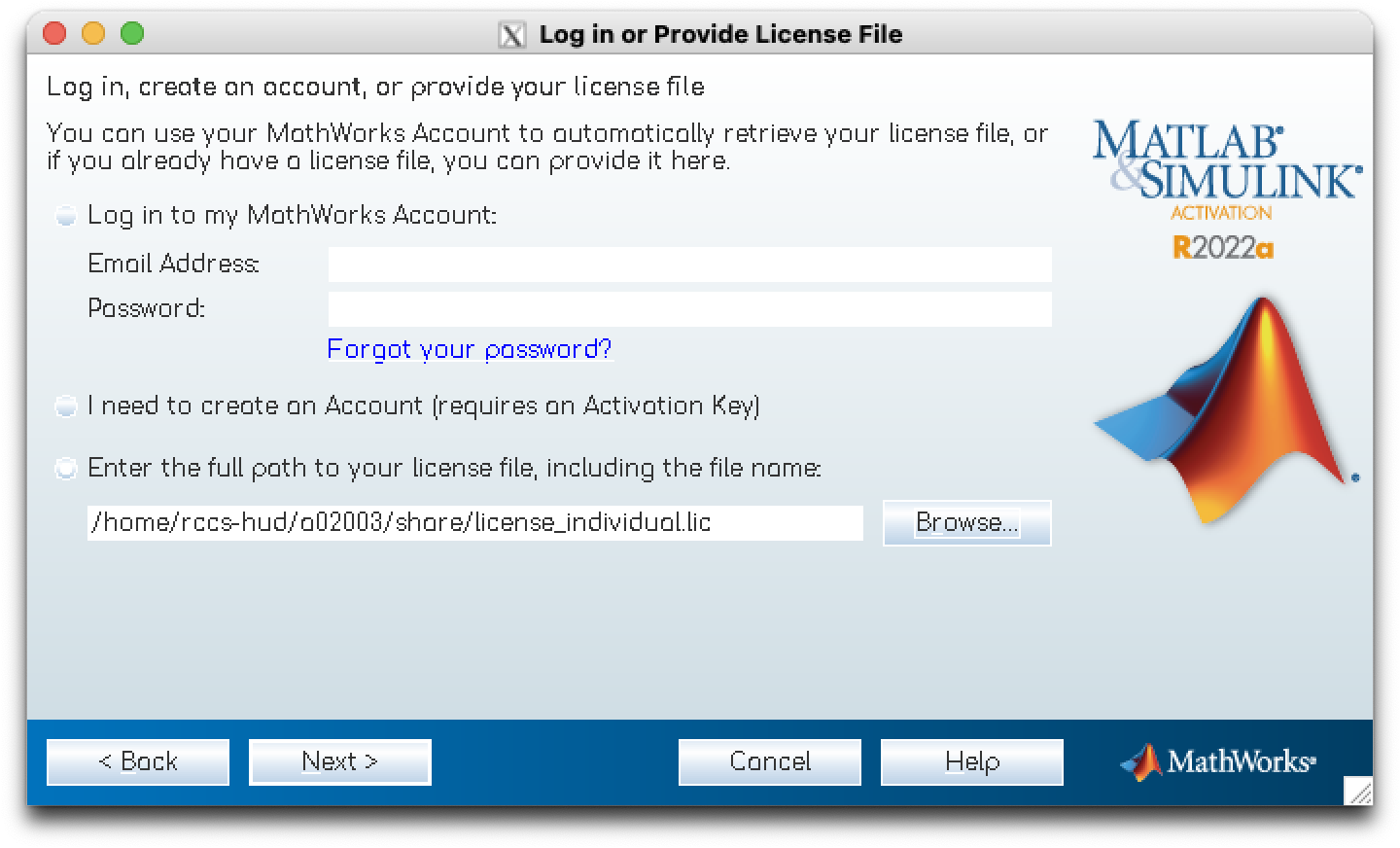

Select “Enter the full path to your license file, including the file name” and enter the path to the license file in the text field. Then press the “Next” button.

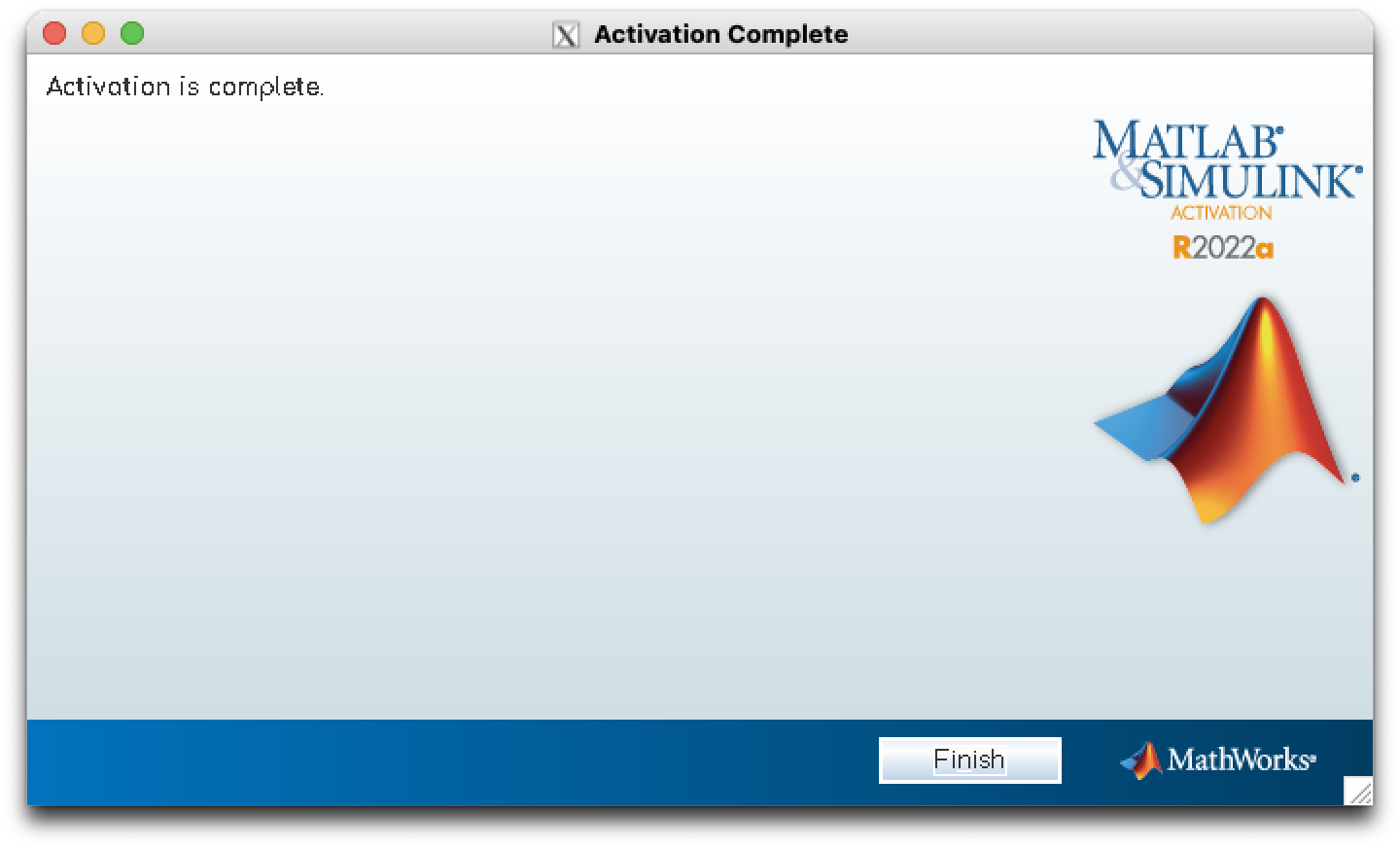

If the following dialogue appears, the activation may be completed.

Then run matlab again to start the application.

[PP]$ ./matlab

Please refer to the MathWorks website for details on how to use the tools.

4. MISC¶

The following products are installed. (Available applications depend on your license conditions.)

Pre-installed Products¶
MATLAB
Simulink
5G Toolbox
AUTOSAR Blockset
Aerospace Blockset
Aerospace Toolbox
Antenna Toolbox
Audio Toolbox
Automated Driving Toolbox
Bioinformatics Toolbox
Communications Toolbox
Computer Vision Toolbox
Control System Toolbox
Curve Fitting Toolbox
DSP System Toolbox
Data Acquisition Toolbox
Database Toolbox
Datafeed Toolbox
Deep Learning HDL Toolbox
Deep Learning Toolbox
Econometrics Toolbox
Financial Instruments Toolbox
Financial Toolbox
Fixed-Point Designer
Fuzzy Logic Toolbox
Global Optimization Toolbox
Image Acquisition Toolbox
Image Processing Toolbox
Industrial Communication Toolbox
Instrument Control Toolbox
LTE Toolbox
Lidar Toolbox
MATLAB Report Generator
Mapping Toolbox
Mixed-Signal Blockset
Model Predictive Control Toolbox
Model-Based Calibration Toolbox
Motor Control Blockset
Navigation Toolbox
Optimization Toolbox
Parallel Computing Toolbox
Partial Differential Equation Toolbox
Phased Array System Toolbox
Powertrain Blockset
Predictive Maintenance Toolbox
RF Blockset
RF Toolbox
ROS Toolbox
Reinforcement Learning Toolbox
Requirements Toolbox
Risk Management Toolbox
Robotics System Toolbox
Robust Control Toolbox
Sensor Fusion and Tracking Toolbox
SerDes Toolbox
Signal Processing Toolbox
SimBiology
SimEvents
Simscape
Simscape Driveline
Simscape Electrical
Simscape Fluids
Simscape Multibody
Simulink 3D Animation
Simulink Check
Simulink Control Design
Simulink Coverage
Simulink Design Optimization
Simulink Design Verifier
Simulink Desktop Real-Time
Simulink Real-Time
Simulink Report Generator
Simulink Test
SoC Blockset
Spreadsheet Link
Stateflow
Statistics and Machine Learning Toolbox
Symbolic Math Toolbox
System Composer
System Identification Toolbox
Text Analytics Toolbox
UAV Toolbox
Vehicle Dynamics Blockset
Vehicle Network Toolbox
Vision HDL Toolbox
WLAN Toolbox
Wavelet Toolbox
Wireless HDL Toolbox
